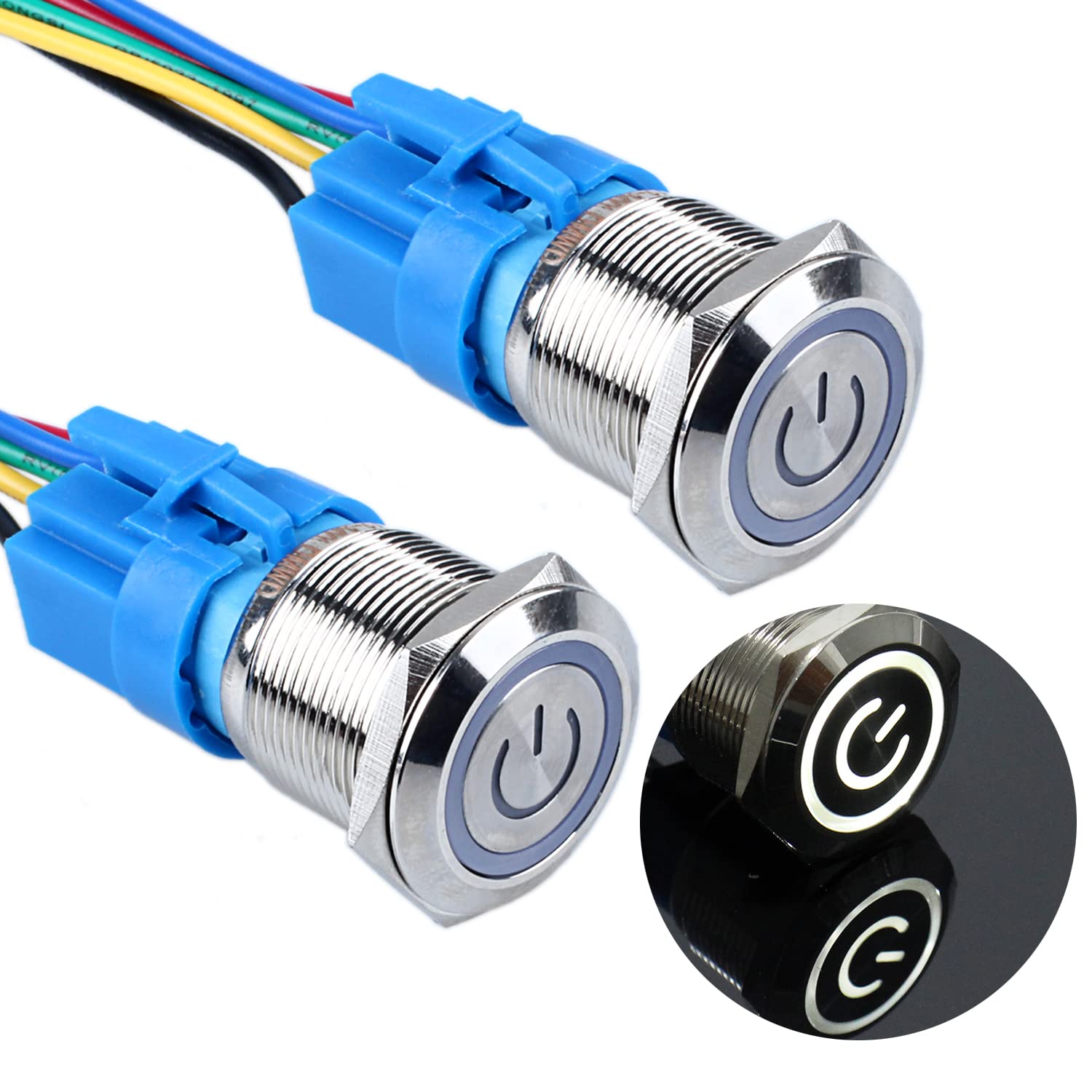

2PCS 16mm Metal Latching Push Button Switch 12V-24V On/Off 1NO 1NC Silver Shell with Socket for 5/8" Mounting Hole Waterproof Power Symbol (White Led)
Product details
| Management number | 236843085 | Release Date | 2026/07/10 | List Price | $4.80 | Model Number | 236843085 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Latching: Press the button--ON, Press the button again--OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles
- Mounting Hole: 16mm(5/8"); LED Light: 5A 12V-24V Power Symbol White; LED life: 40, 000 Hours
- 4 wiring methods: 1NO 1NC; LED light can be always on, or illuminates when the device is working; 5 brass terminals are connected to the pre-wired socket, No need to solder which makes your operation much easier
- Protection Degree: IP66 Waterproof and dustproof; IK09 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
- Wide Usage: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
| ASIN | B0G5NH518N |
|---|---|
| Color | White |
| Brand Name | DMWD |
| Unit Count | 2.0 Count |
| Part Number | ANTDN-ZSDYDC-16W-2Tao |
| Contact Type | 1no1nc |
| Manufacturer | DMWD |
| Connector Type | Plug In |
| Current Rating | 5 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 0.7 x 0.7 x 1.38 inches |
| Operating Voltage | 12 Volts |
