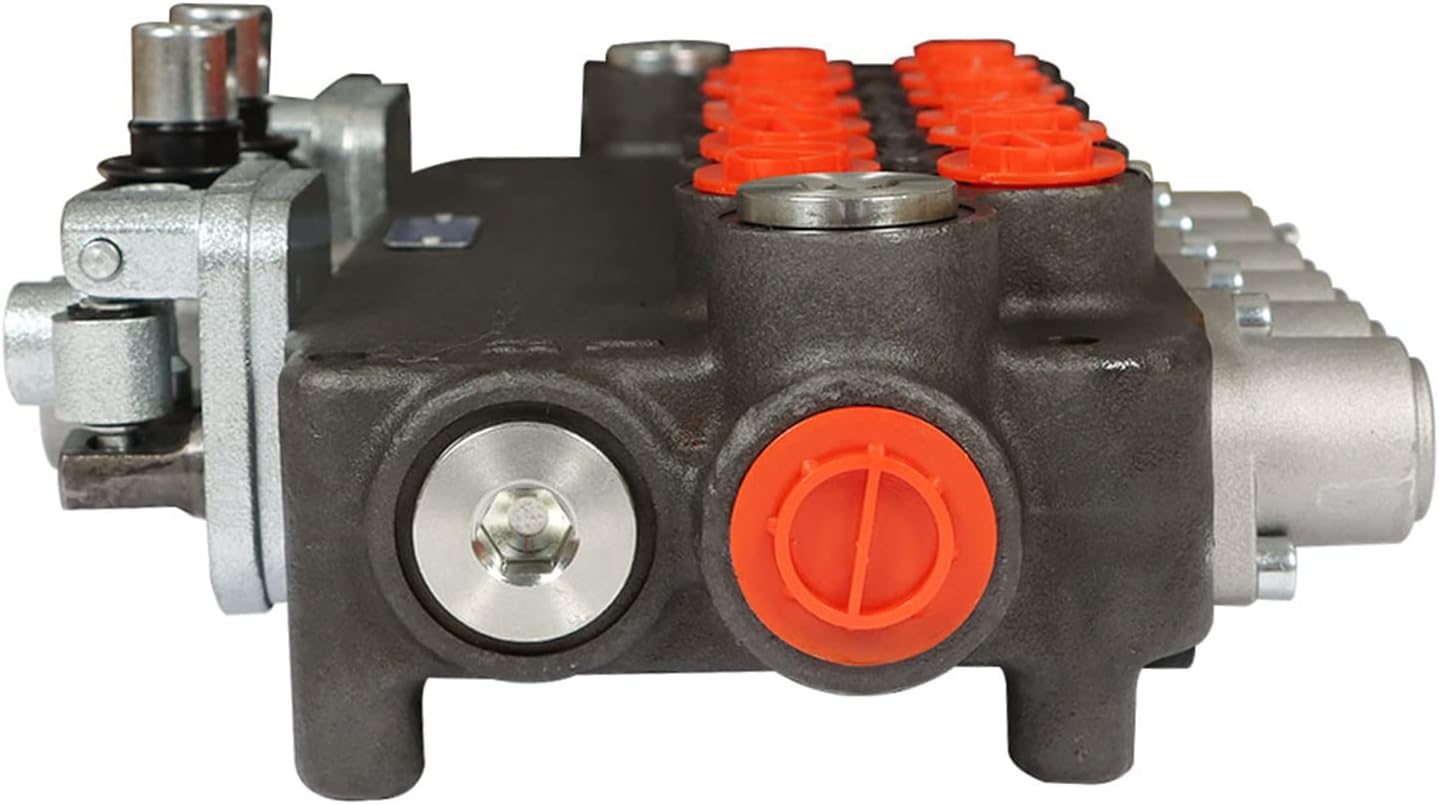

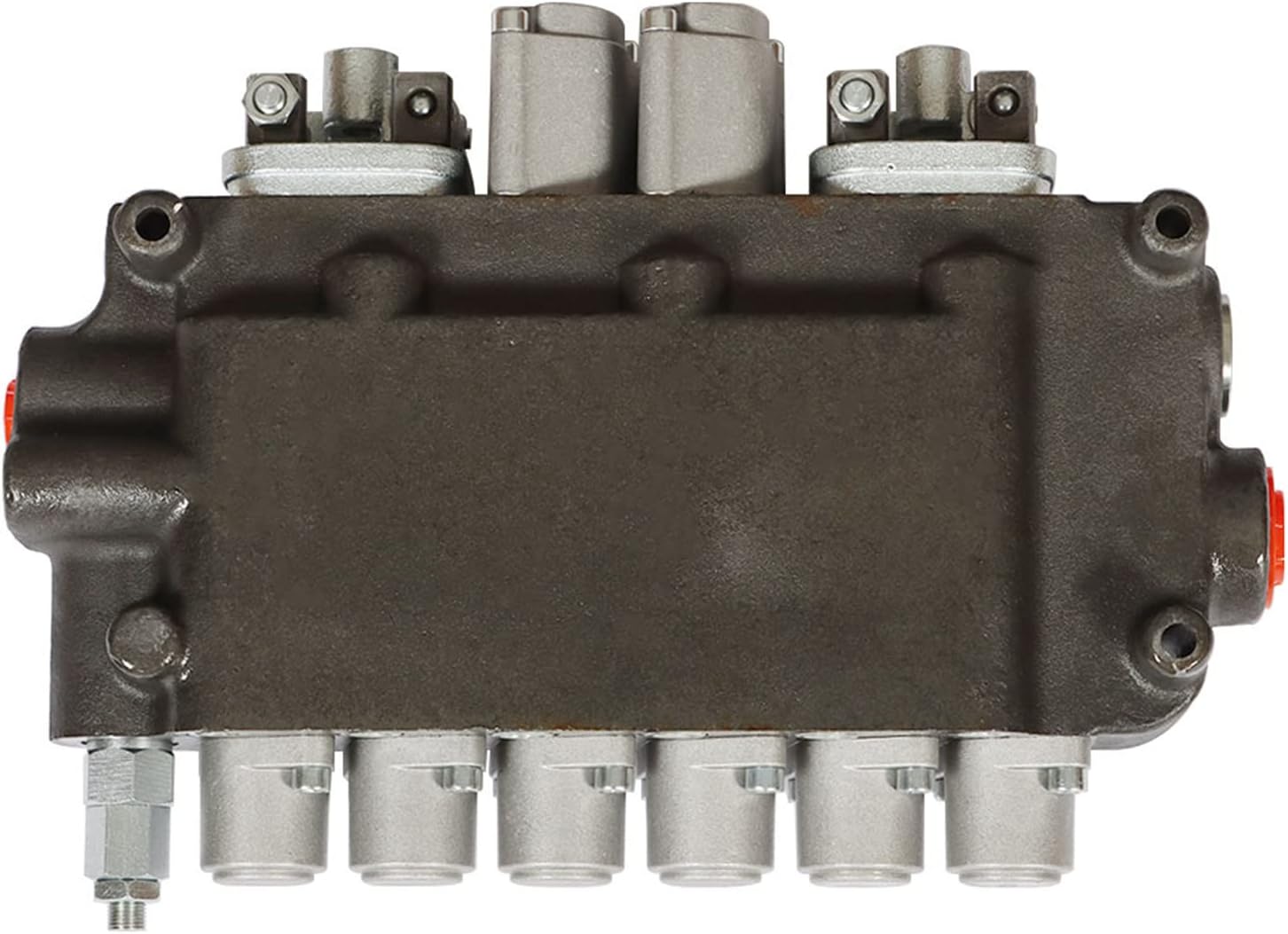

6 Spool Hydraulic Backhoe Directional Control Valve with 2 Joysticks 21 GPM for Tractor Loader Motors Spool Double Acting SEA Ports

6 Spool Hydraulic Monoblock Double Acting Control ValveSpecification:Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSIPreset Pressure Relief: 2610 PSIFlow Rating: 21 GPM (80 l/min)A & B Work Ports: 10 SAE O-Ring (7/8"-14) ThreadInlet Port: 10 SAE O-Ring (7/8"-14) ThreadOutlet Port: 12 SAE O-Ring (1-1/16"-12) Thread3 - 5/16" Mounting HolesFeature:- 6 Spool valve with compact design allows for installations in tight areas- All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders- Used for open center systems (Pump to Tank Flow) - closed center option available- Anti-drop load checks on each spool- Precision ground and hard chrome-plated spools assure a long life- High-tensile strength cast iron monoblock construction- SAE O-Ring ports ensure solid seal and prevent blockages- Capable of Closed Center or Power Beyond (conversion plug required)- Vertical or horizontal handle mount- Adjustable Relief Valve Range: 1500 to 3625 PSI- Used as motor or single-acting spool possible (10 SAE port plug required)Package includes:1 x Hydraulic Directional Control Valve

• Double Acting - Our hydraulic control valve is made for operating double-acting cylinders
• Durable Quality- This hydraulic directional control valve comes with 7 spool and 10 SAE O-ring in/out ports, with cast iron construction for long-time use
• High Performance - This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 21 GPM
• Spring Return - All spool valves come with spring return, which can return to the neutral position
• Widely Used- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc
