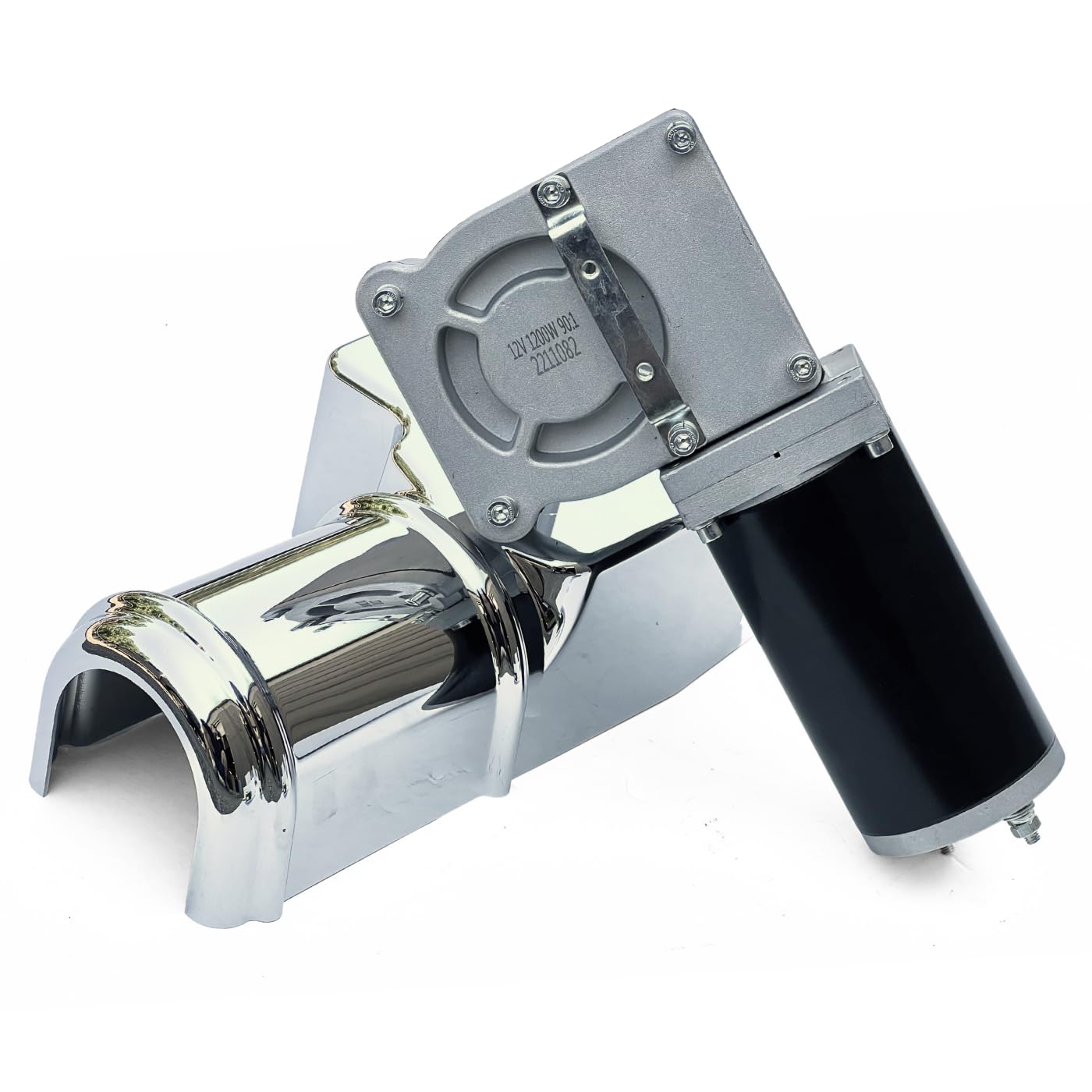

Carolina Tarps - Tarp Motor for Electric Dump Truck Tarp System 90:1 Gear Motor

Our 1.5 HP Super Duty Motor has a 90:1 gear ratio and a direct drive 12VDC motor. 1-year warranty assures you that this is a powerful, durable motor that will keep your tarping system up and running. Generally used in longer trucks and trailers that require more torque. Compatible with Buyers 5541095, US Tarp 13957, Aero 0755-627005, Cramaro 164905. Features include: Sealed gearbox for even lubrication Sealed drive shaft and encased bearing protects from dirt and particles 3.125" x 0.75" extended output shaft that fits a broad range of tarping systems 10.75" x 5.75" x 3.25" Motor Body 90 tooth drive gear for more torque and extended life Chrome/plastic cover and fasteners included 5 mounting holes designed to fit 3- and 4-bolt configurations 100% tested for quality control Shaft in motor will not turn without electric current 12 volt, 1.5HP, 90:1, 1200 watts, 36.90 lbs torque, 50 rpm

• 90:1 Gear Ratio, 1.5 HP, 12V Direct Current, 36.9lbs torque. 50 RPM. One of the FASTEST, Strongest Electric Tarp Motors Available.
• 90:1 gear ratio delivers extreme pulling power, making this motor ideal for long dump bodies, heavy tarps, and demanding applications where standard motors struggle
• UNIVERSAL FIT. 5 mounting hole design fits both 3- and 4-bolt configurations, allowing for quick installation on a wide range of tarp systems without modification
• Features a sealed gearbox, sealed drive shaft, and protected bearings to shield from debris and ensure long-lasting, reliable operation in harsh conditions
• Compatible with Buyers 5541095, US Tarp 13957, Aero 0755-627005, and Cramaro 164905
• Includes chrome/plastic cover and mounting hardware, plus 100% testing for quality control and a 1-year warranty for peace of mind
• 1-YEAR WARRANTY: This electric tarp motor will deliver years of speed, strength, and reliability under normal use. Due to electric motor efficiency and electric power available from your vehicle's battery or alternator, these units are rated for intermittent use. Use for short periods of time only, allowing it to cool between uses. If your motor becomes too hot to touch, stop operation and allow it to cool. Recommended wire is 6 or 8 gauge.
